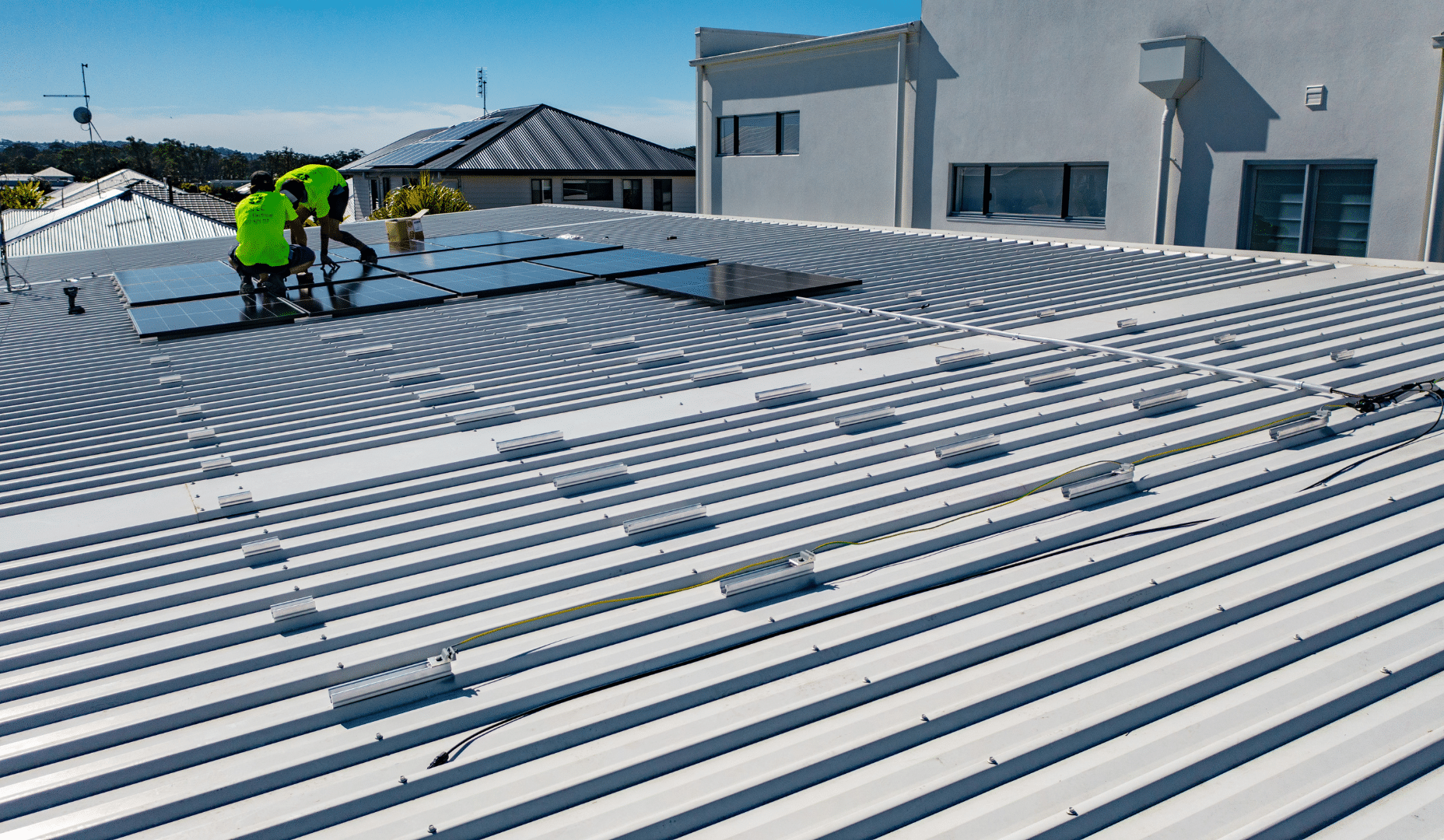

K2 MultiRail System

Roof connection and mounting rail in one component. Available as a short rail or a flexible component in various lengths.

Roof connection with module railing in one single component

Easy and proven – as a short rail or a flexible component in various lengths

Quick planning with less material and greater effectiveness

Solid base rail for trapezoidal elevation with Dome 6

K2 Base: Simple, fast and safe PV planning

Quick and easy planning in five steps of K2 mounting systems for pitched and flat roofs as well as façades. Our free planning tool K2 Base has a dashboard for efficient project control. Google Maps integration and graphic drawing tools support and facilitate your planning.

Start planning

System variants

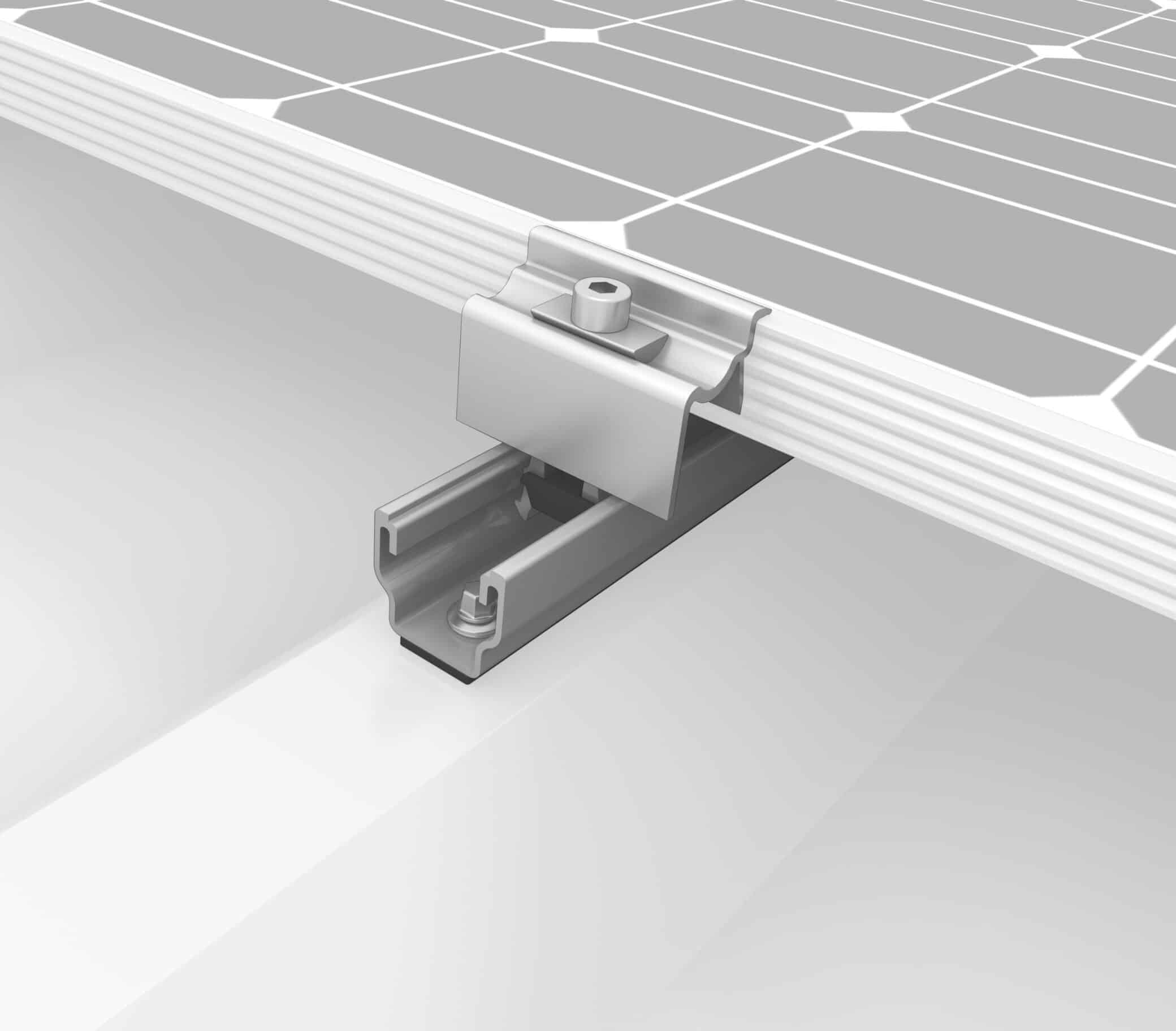

K2 MultiRail

With just one component, installation on trapezoidal sheet metal and sandwich elements is particularly easy and time-saving.

Matching components

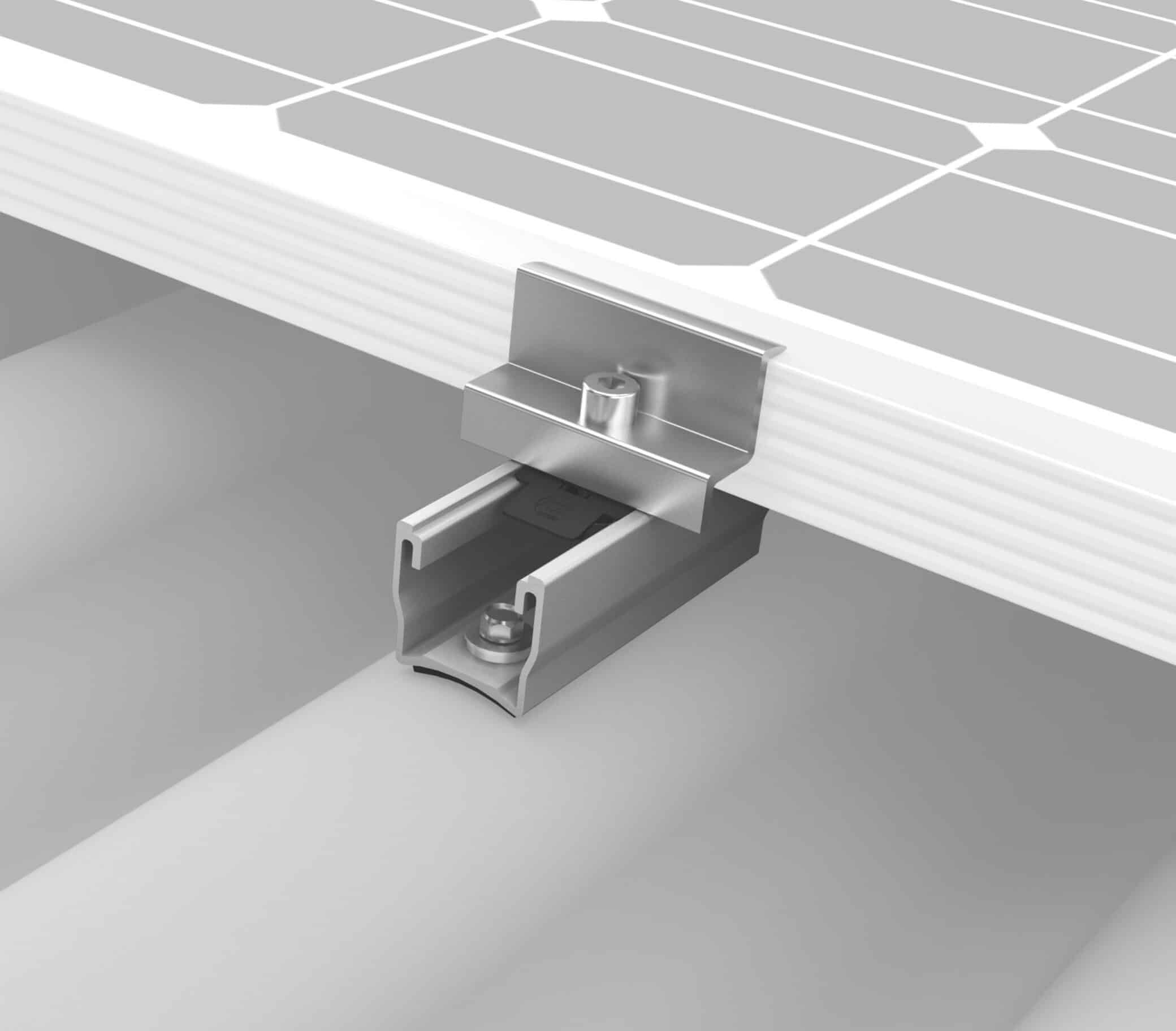

K2 MultiRail CSM

Installation on corrugated sheet metal is particularly quick and easy with just one component, saving valuable time.

Matching components

System highlights

With elevation for more yield

from our flat-roof system Dome 6 can produce a better angle of incidence with the elevation and thus a higher yield. The clever connection for trapezoidal sheeting is safe in terms of holding force and economical in terms of material and transport.

K2 MultiRail High

With the new MultiRail High, which has a height of 100 mm, installers gain increased clearance in thermally demanding environments. The extra space beneath the module also allows the integration of micro‑inverters or power optimizers. The MultiRail High measures 150 mm in length and is secured with four thread‑forming metal screws, ensuring reliable water tightness together with the EPDM sealing.

There are two dedicated versions:

• for trapezoidal sheet metal: MultiRail High (2004704)

• for corrugated sheet metal: MultiRail High CSM (2004706)

Lightning protection and equipotential bonding

Our lightning protection clamp set can be placed directly on the MultiRail. Aluminium conductors are therefore directly connected for lightning protection.

PVX Minimount

Our well-suited Performa mesh trays are high quality and rust-free. Installed without tools, secure, galvanically isolated cable ducting can be ensured.
