K2 N-Rack Kits for ground mounted PV systems

K2 N-Rack Kits

Kit solutions for small ground-mounted PV systems

For small ground mounted PV systems

Foundation types: Gabions, concrete, screwed and pile-driven foundations

Straightforward installation with readily available tools and equipment

Faster planning through standardised system design

Potential for small ground mounted systems

Vacant plots of land, large gardens, unused agricultural land and vacant parking spaces offer considerable, as yet untapped potential for small ground-mounted PV systems.

The K2 N-Rack Kits provide simple, design-free mounting systems for smaller installations.

Clear structure: Top Kit + Ground Kit

The K2 N-Rack kits each consist of one Top Kit and several Ground Kits.

Top Kits

The Top Kit contains the main components of the respective layout and is always identical and standardised in design. The resulting module inclination is 20 degrees.

There are two pre-configured layouts available:

2 × 7 modules portrait for small-scale installations (“Garden PV”)
2 × 12 module portrait as a standard table size up to approx. 250 kWp

The Top Kits are available in two versions, depending on the module size:

Version S
Length 1,722–1,905 mm
Width ≤ 1,150 mm
Version L
Length 1,906–2,384 mm
Width ≤ 1,150 mm

The layout can be flexibly adapted for module widths of up to 1,303 mm, allowing for the installation of either 2×6 or 2×10 modules.

View Kits

Illurtration der N-Rack Top Kits für PV-Freiflächen-Anlagen

Ground Kits

Depending on ground conditions, four foundation types are available. All of them can be implemented using equipment from standard tool and equipment rental providers.

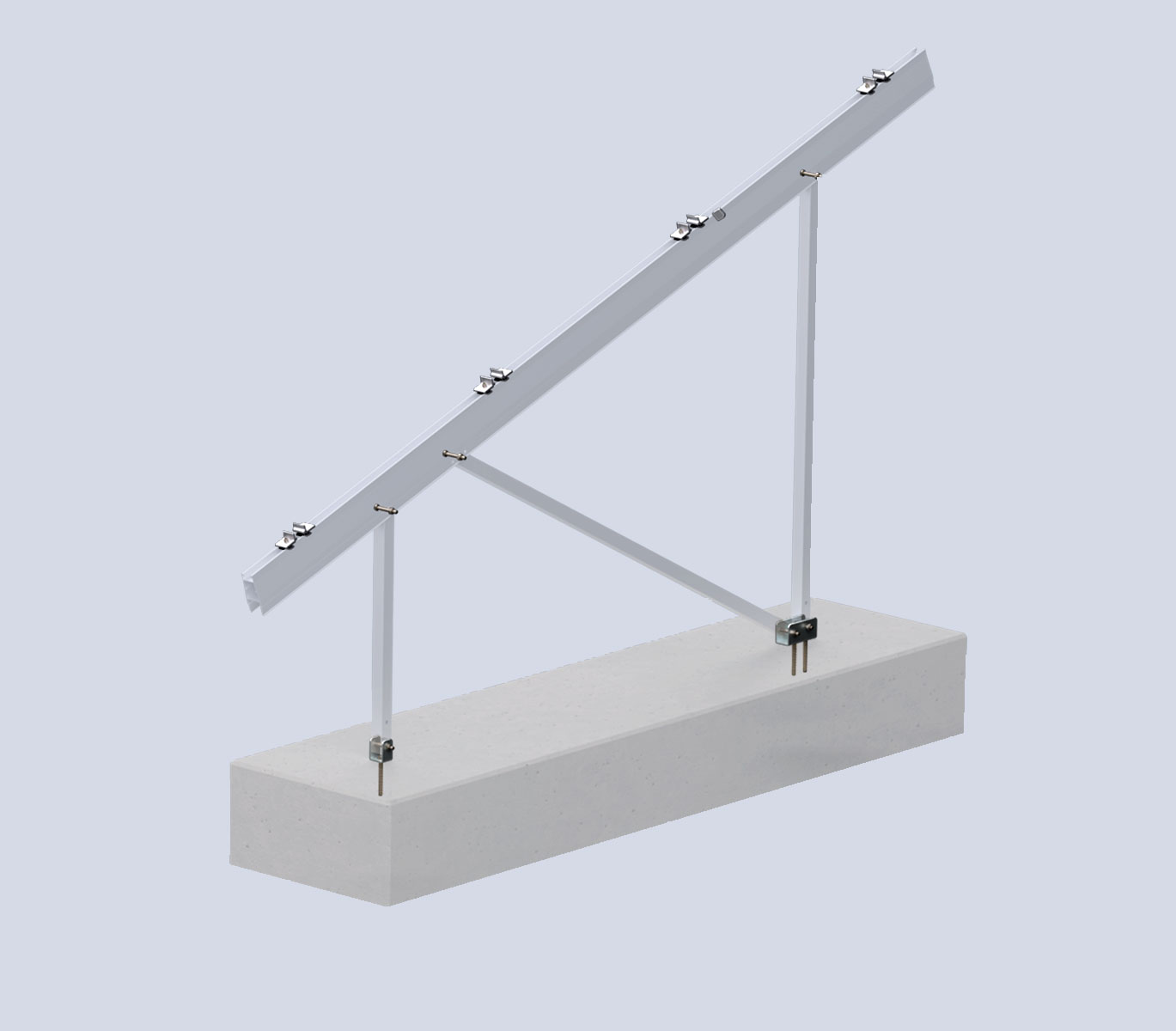

Concrete

to be provided on site as strip or column foundations
by direct connection to existing concrete surfaces

N-Rack Base Kit Stütze mit Anbindung an Betonfundamente

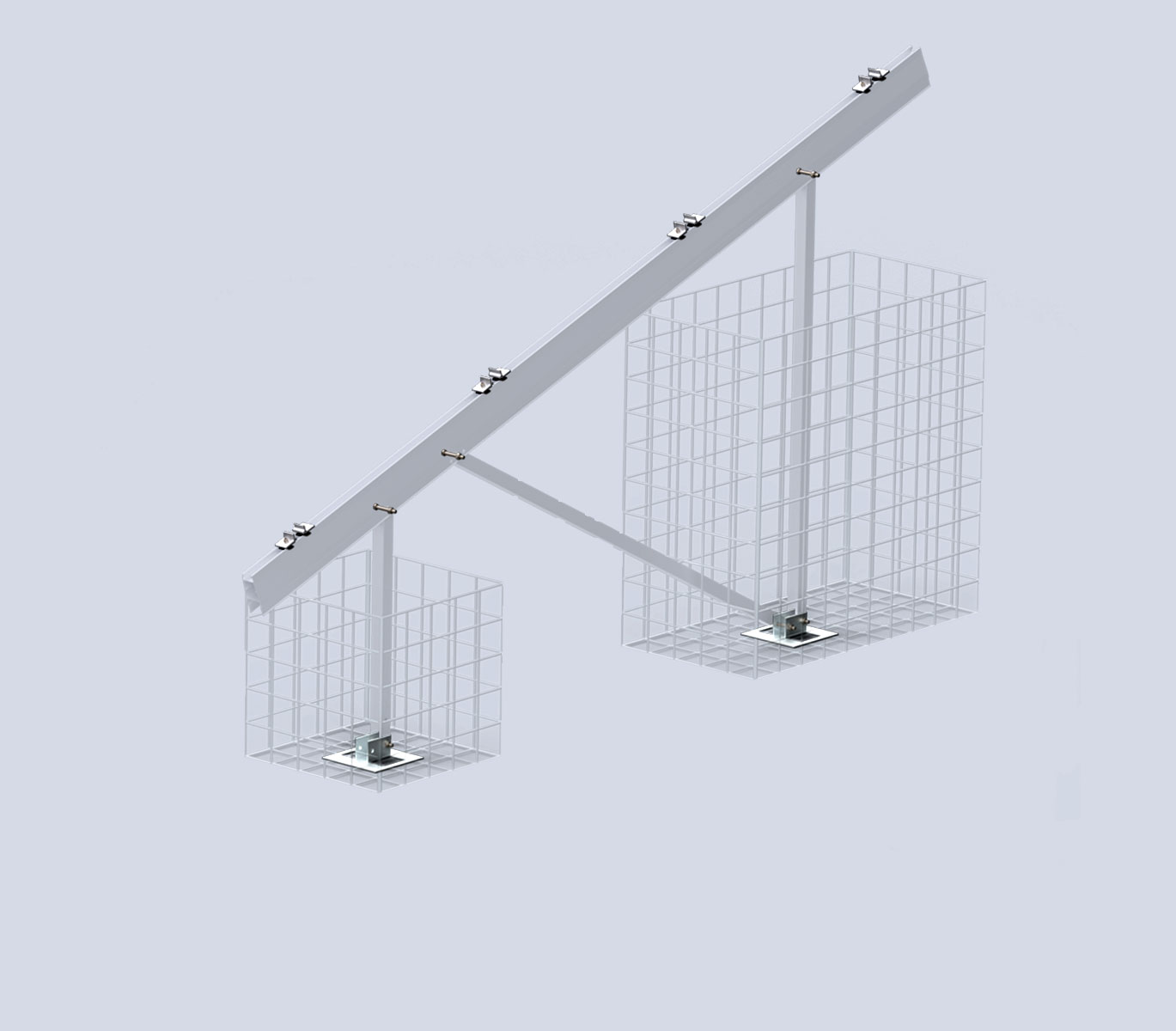

Gabions

Simple, tool-free installation: simply slot the gabion baskets together and fill them with rubble; then assemble the Top Kit using standard DIY tools
Gabion baskets available from K2

N-Rack Base Kit Stütze mit Anbindung an Gabionen

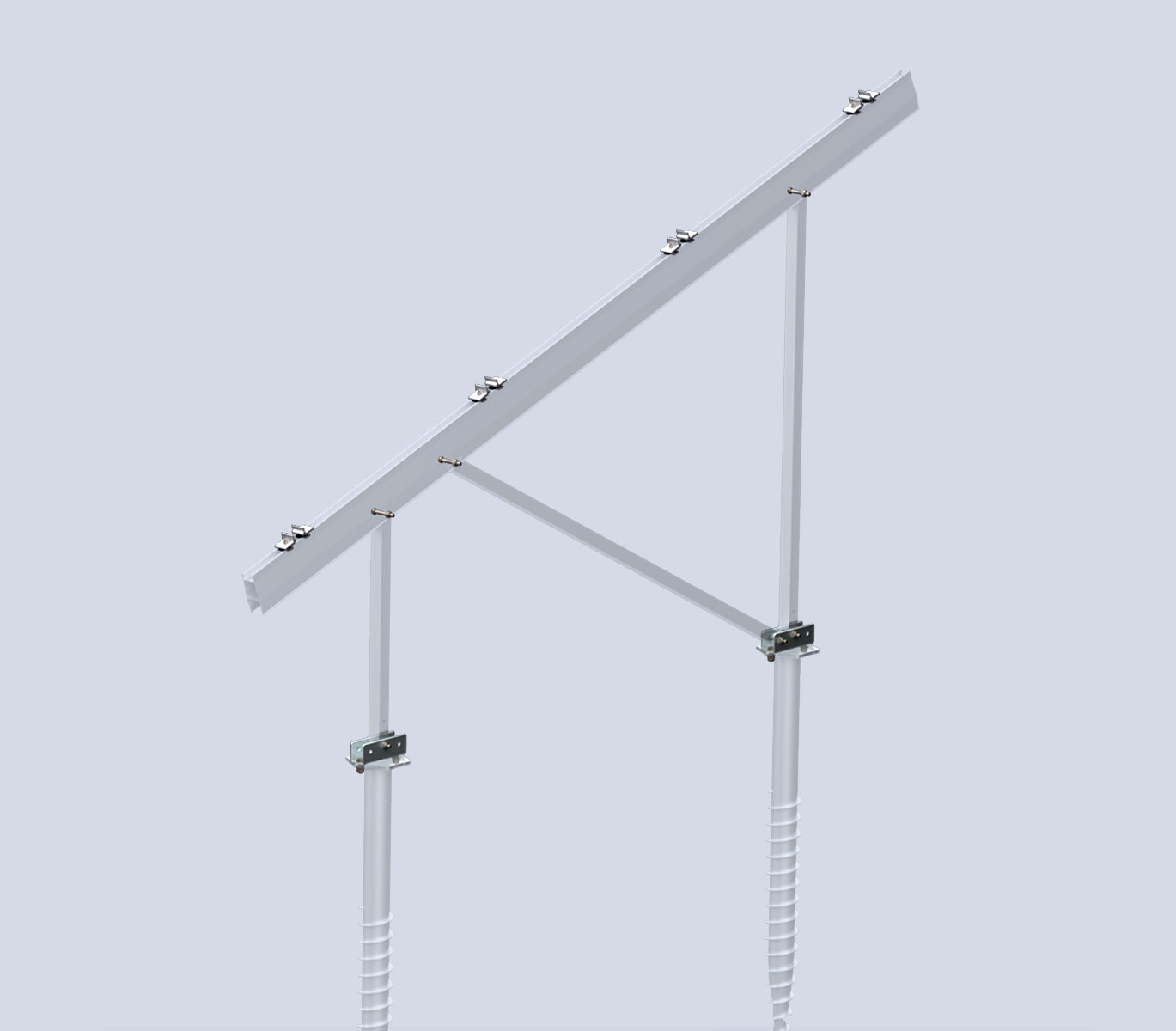

Screwed foundation

Suitable for load-bearing substrates
Available in standard lengths from K2

N-Rack Base Kit Stütze mit Anbindung an Dreh- bzw. Schraubfundamente

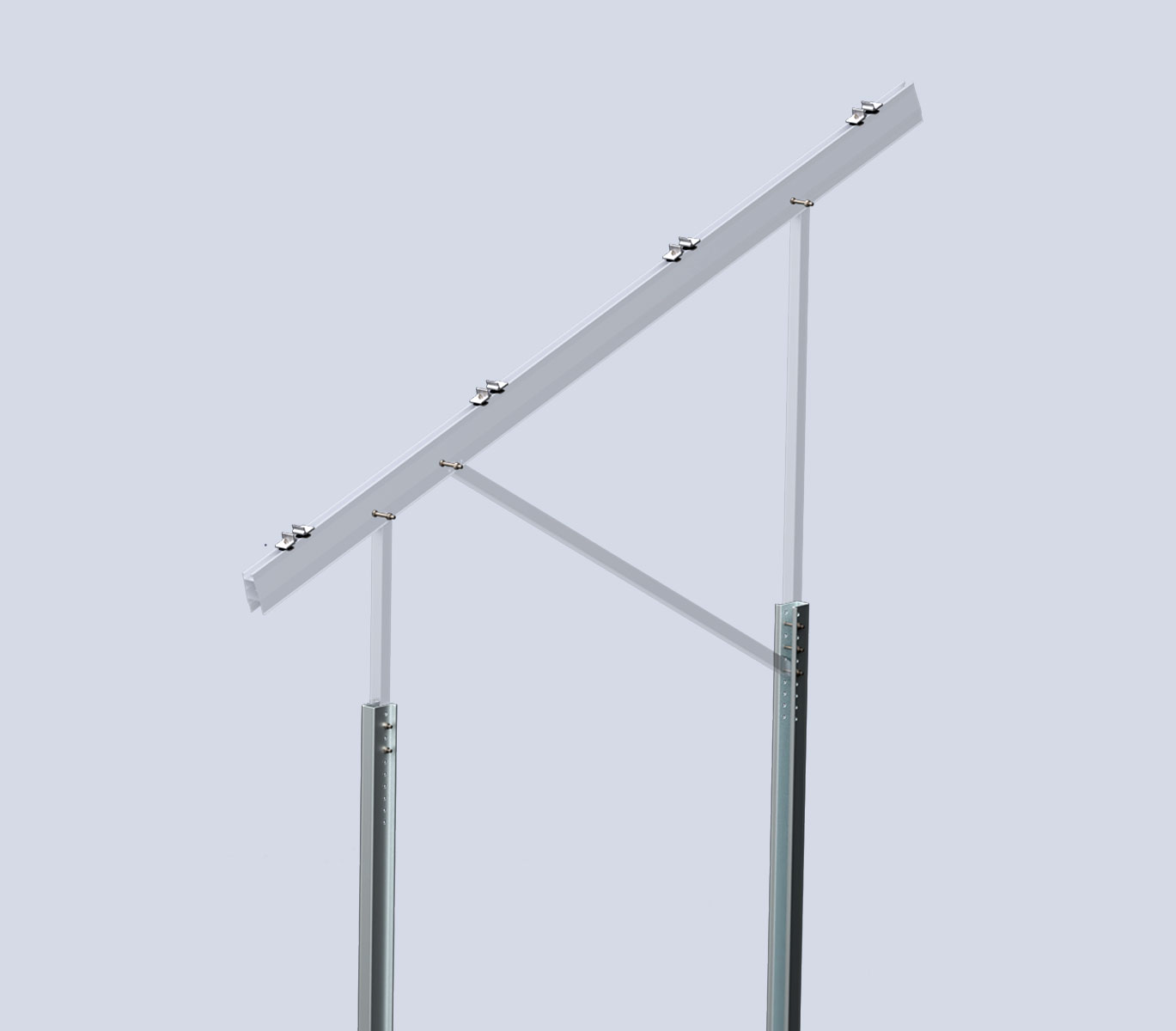

Pile-driven

For load-bearing substrates
Available in standard lengths from K2

N-Rack Base Kit Stütze mit Anbindung an Rammfundamenten

Configuration of Top and Ground Kits

Ground Kits		N-Rack Top Kits
Ground Kits		2×7		2×12
Module lengths L: 1,906 – 2,384 mm S: 1,722 – 1,905 mm Module widths L/S: ≤ 1,150 mm		S	L	S	L

		1× 2004925	1× 2004924	1× 2005048	1× 2005047
Type of foundation	Item no.	Number of ground kits required per top kit
Gabions	2005110	4×	5×	6×	8×
Concrete	2004926
Screwed	2004927
Pile-driven	2005113

Animation zu den verschiedenen Connection Kits von N-Rack Kits

Easy planning and installation

The K2 N-Rack kits are designed to meet the following standard load cases:

Wind load 0.67 kN/m²
Snow load 1.75 kN/m²

They therefore require no additional static verification, which speeds up the planning process.

In addition, all components are designed so that they can be assembled quickly using standard tools. This modular approach reduces complexity, stockholding and installation time.

The combination of standardised assembly, clear packages and flexible mounting options makes the N-Rack Kit a straightforward solution for smaller ground-mounted solar installations.

Kit overview
Assembly instructions
Technical data sheets

Downloads

The right solution for systems of any size

For medium-sized and large-scale ground-mounted solar power plants, we offer project-specific solutions. A wide range of projects can be covered thanks to various layout and anchoring options.
