Determination of the friction between roof skin and building protection mat of the PV mounting system
The positional safety of a penetration-free mounting system on flat roofs is achieved through the dead weight, module weight and additional ballast. The prerequisite for installation is therefore that the building has sufficient load-bearing reserves and that the roof structure is suitable.
A significant influence on the positional safety of this type of construction is the interaction between the roof cladding and the building protection mat, as well as between the mounting system and the building protection mat, which are described by a coefficient of static friction or coefficient of friction. The coefficient of friction flows 1:1 into the static calculation. It is therefore necessary to determine or verify the coefficient of friction on site.
Do you have questions about this or do you need support? Talk to us…
Test set: Determination of friction coefficient
Simple and accurate determination of the coefficient of friction with few measuring points

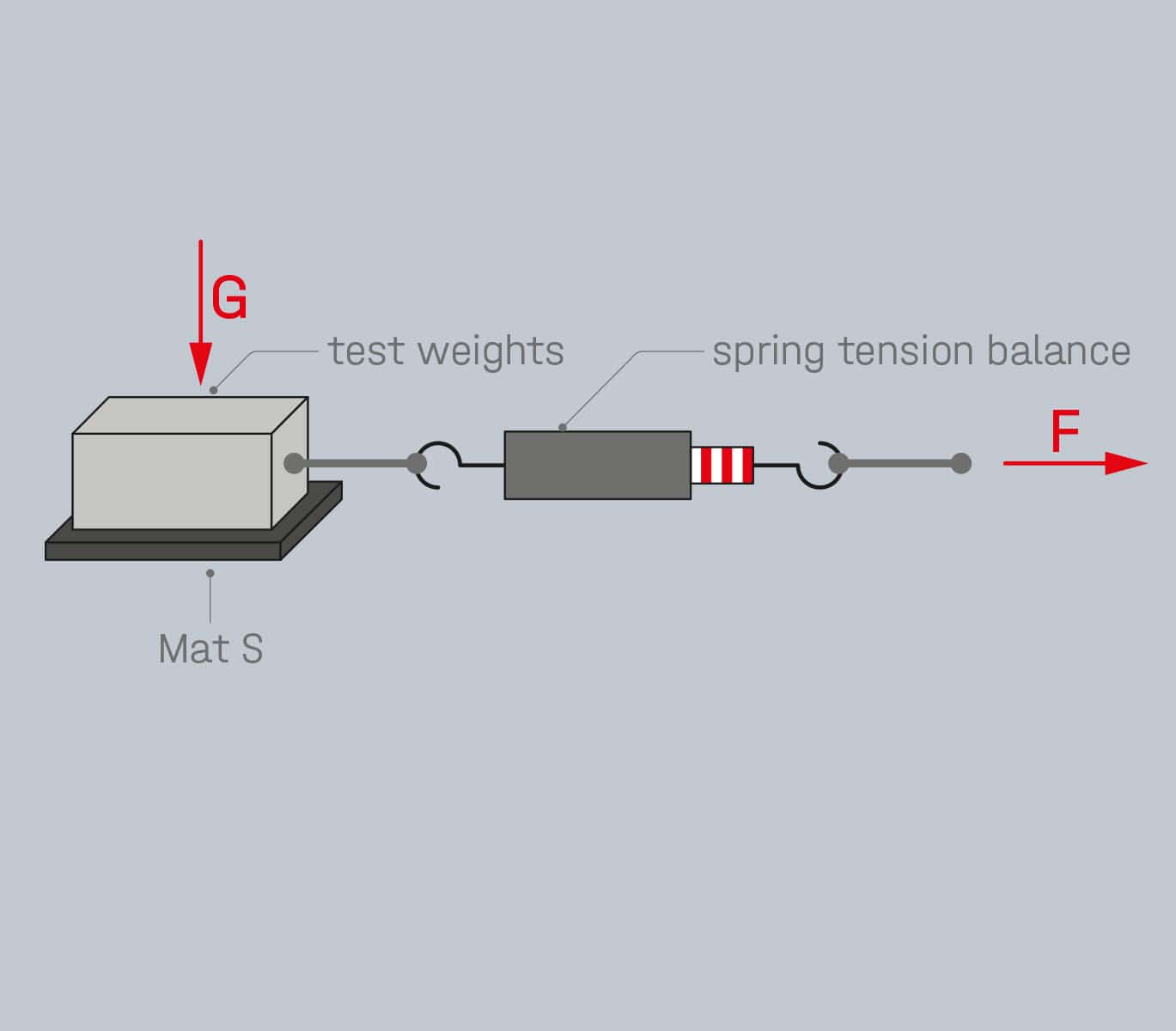

Test weight, spring tension scale and test pieces of building protection mat or Mat S. This tool can be used to determine the value on bitumen, foil, concrete, gravel and green roofs.
Testing the coefficient of friction
The coefficient of friction, also called the coefficient of friction (formula symbol µ), is a dimensionless measure of the frictional force in relation to the contact force between two bodies.
As an aid to recording the measured values, we offer our test report template for the coefficient of friction.
Please enter the average value determined in the "Roof" area in K2 Base. Please also note the information in the protocol Coefficients of Friction.
