Strong. Simple. Durable.

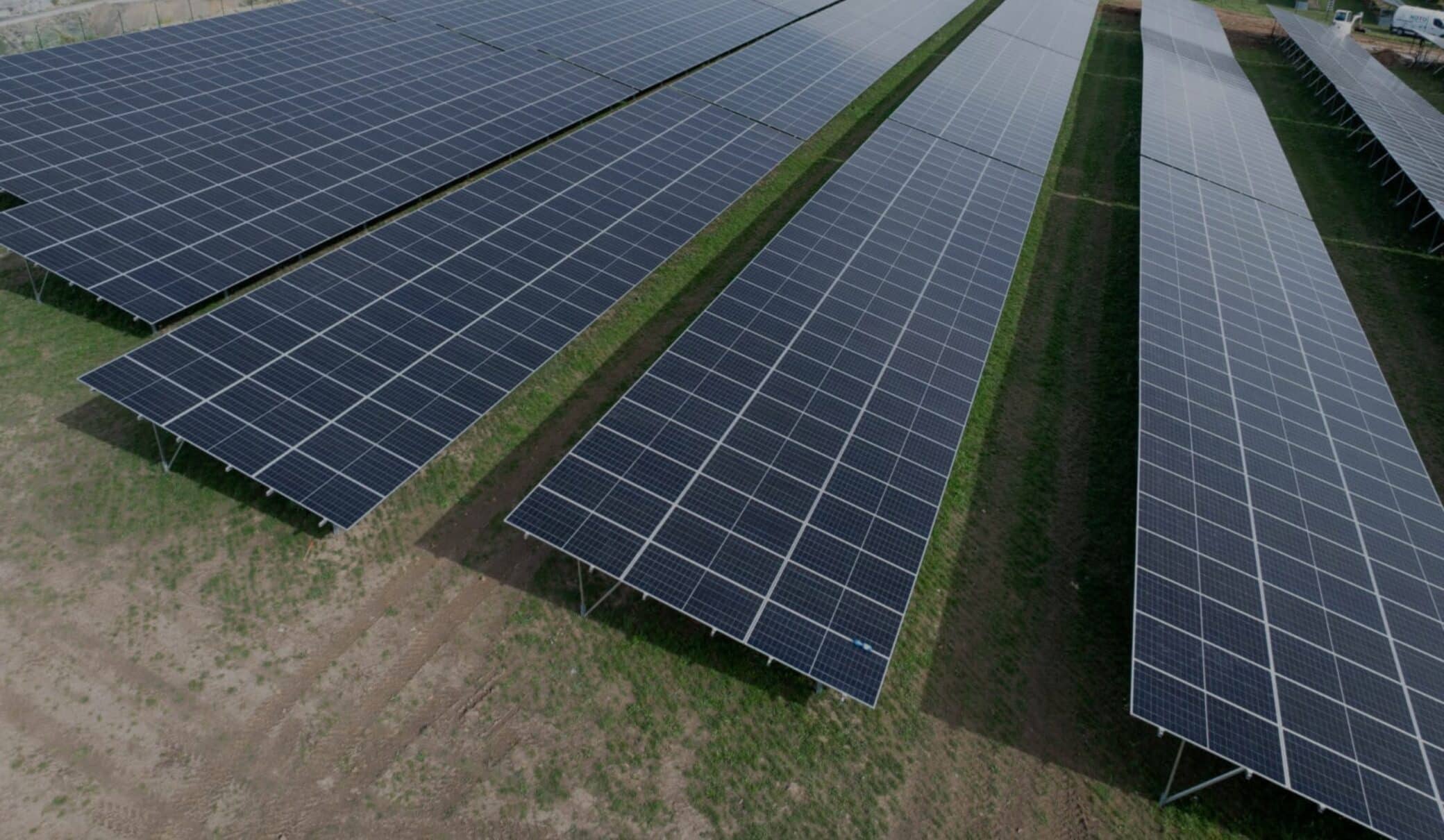

Our solutions for large-scale ground mount systems

Designed for big ideas and sustainable impact: K2 solutions combine strength, speed, and sustainability for large ground mount systems. Tested according to international standards, they ensure reliable performance for decades. And from planning support to coordination of soil analysis to seamless logistics – our experts make sure that your PV system is built on a solid foundation.

Send project inquiry

K2 Montagesysteme
K2 Pi-Rack K2 N-Rack Showcase project Contact us

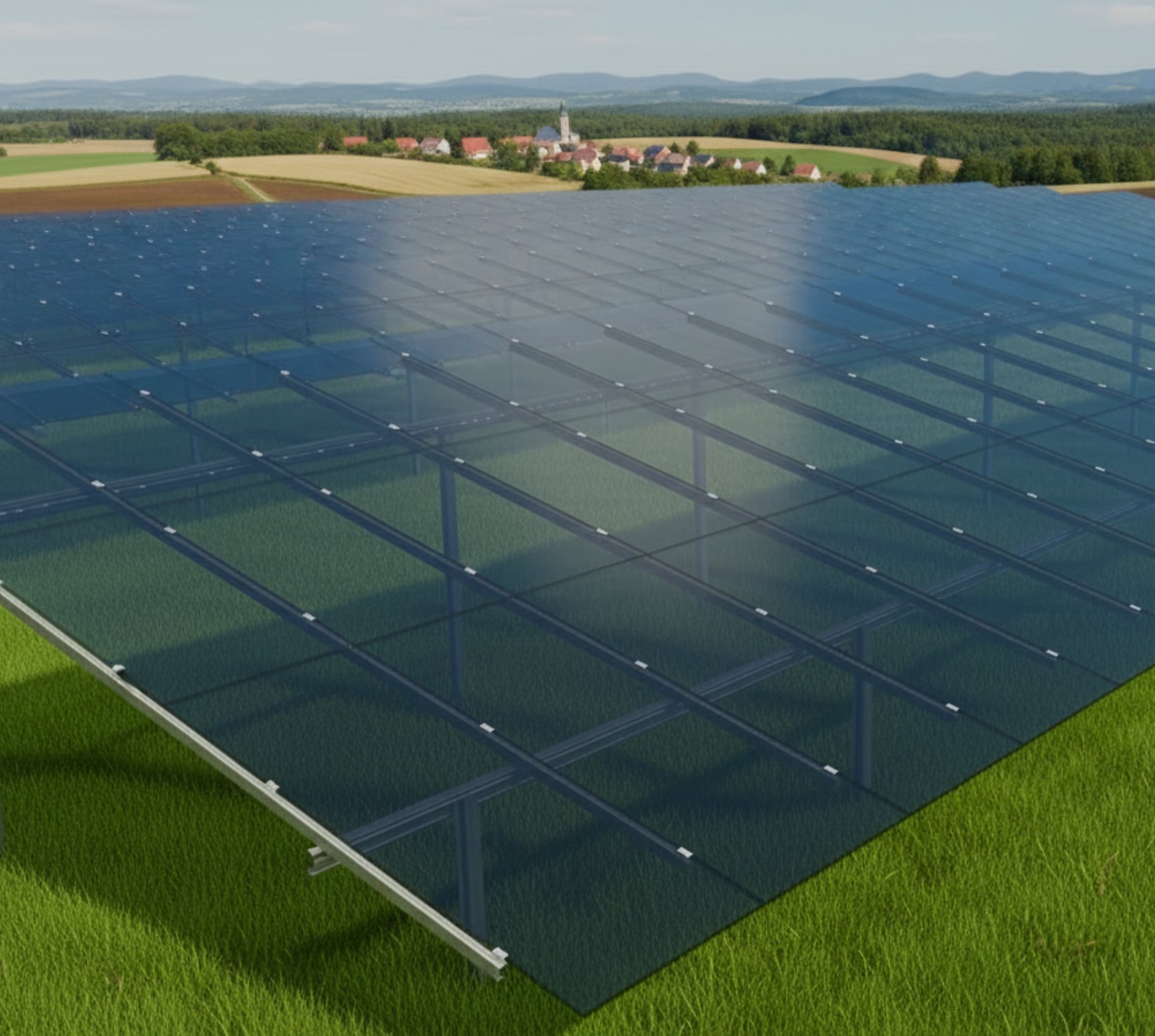

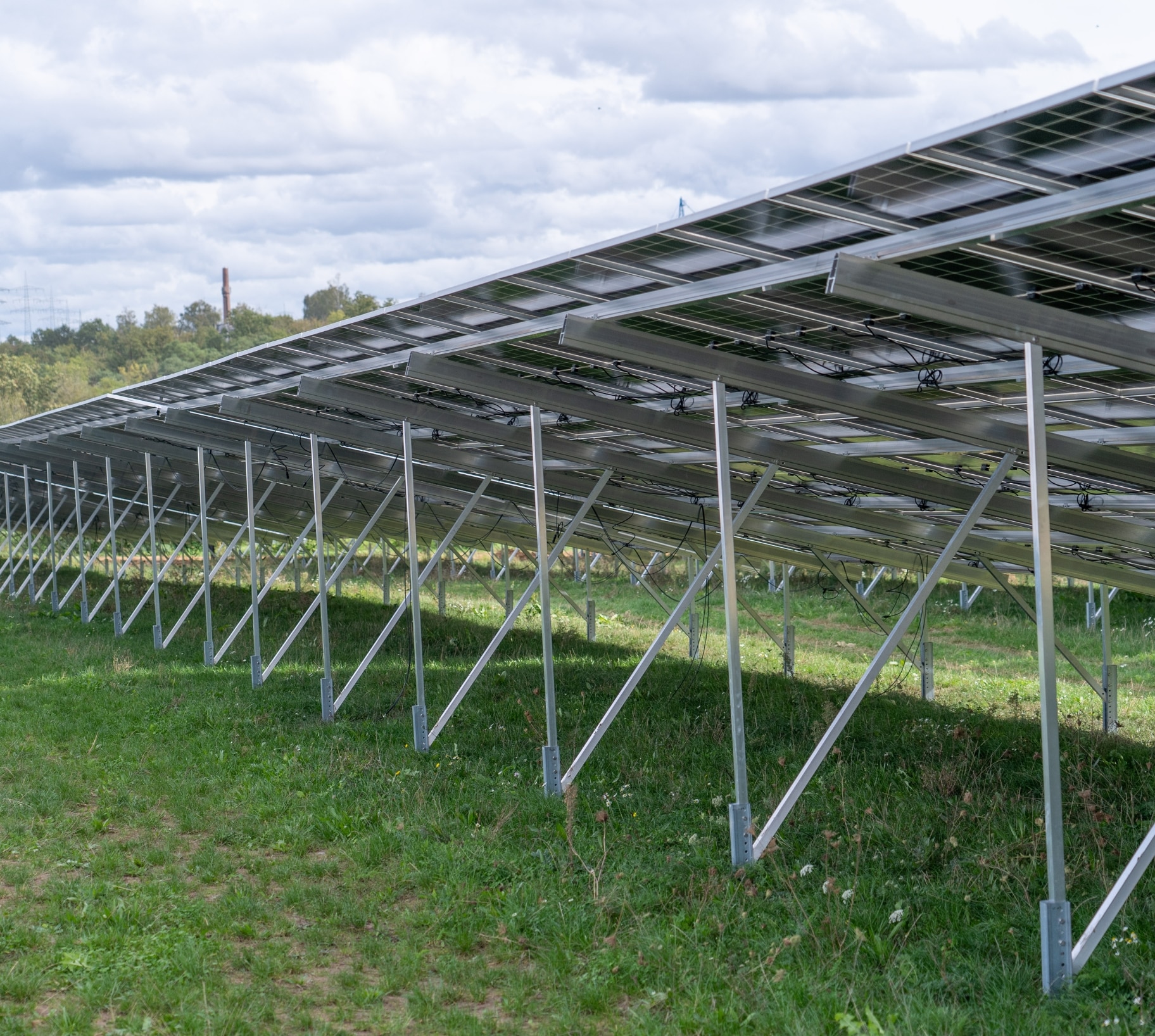

Pi-Rack for large-scale ground-mounted systems

Simple installation Quick module mounting by sliding in the modules and clamping from below

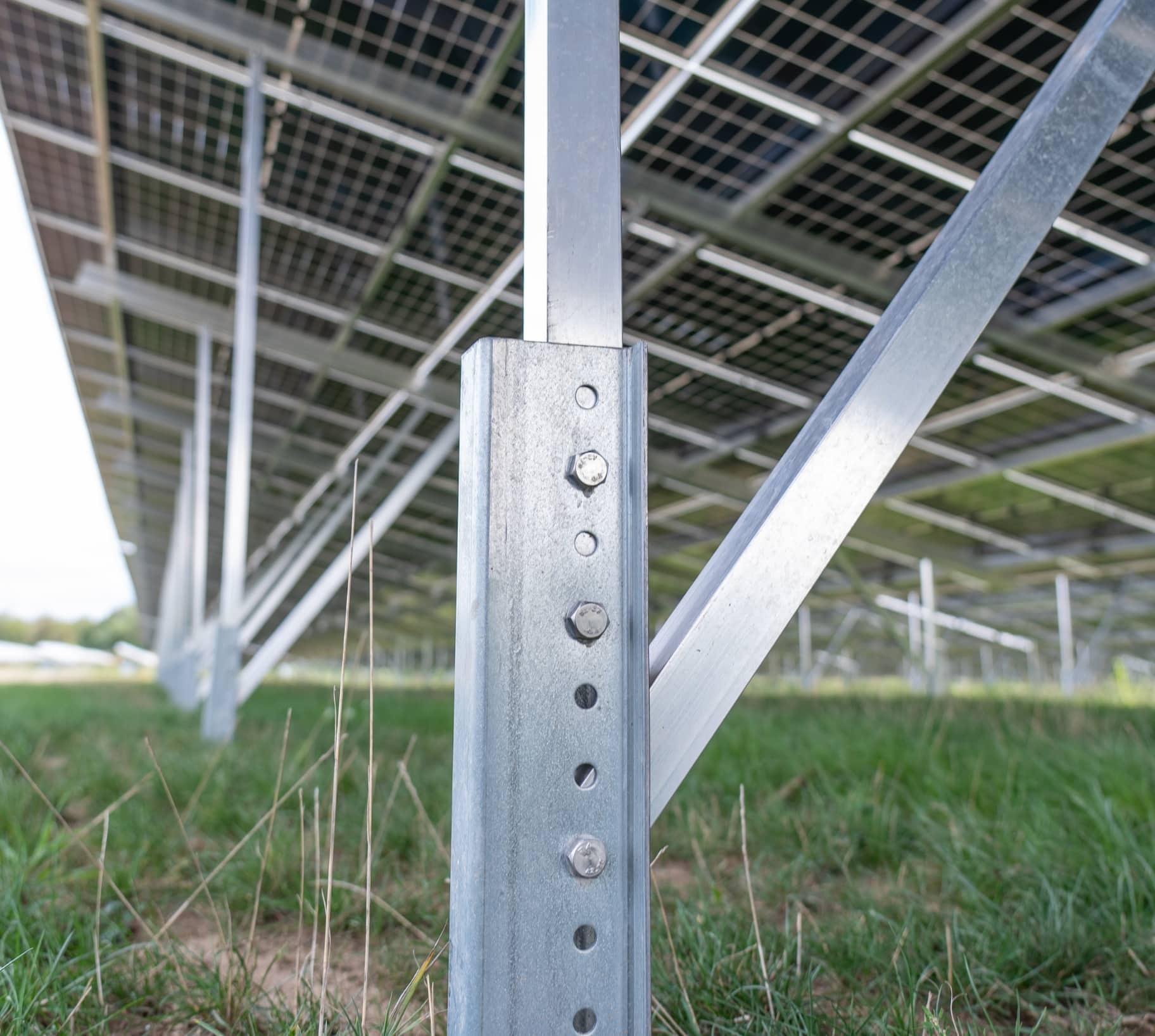

Optimized steel support structure with Zinc-magnesium-aluminium coating All steel partsare fully coated – layer thickness of the drive posts dependent on soil analysis

Integrated cable management Clean, protected, and maintenance-friendly installation of the cables directly in the rafter or purlin profiles

Technical details

  • Safe structural design: Tested according to Eurocode and wind tunnel report
  • Service life: 25 years
  • Support distance of drive posts: up to 4m
  • Increased corrosion protection with Zinc-magnesium-aluminium coating: Drive posts ZM620, other components ZM310



Learn more about our ground-mounted solution

Pi-Rack

Planning a smaller system?

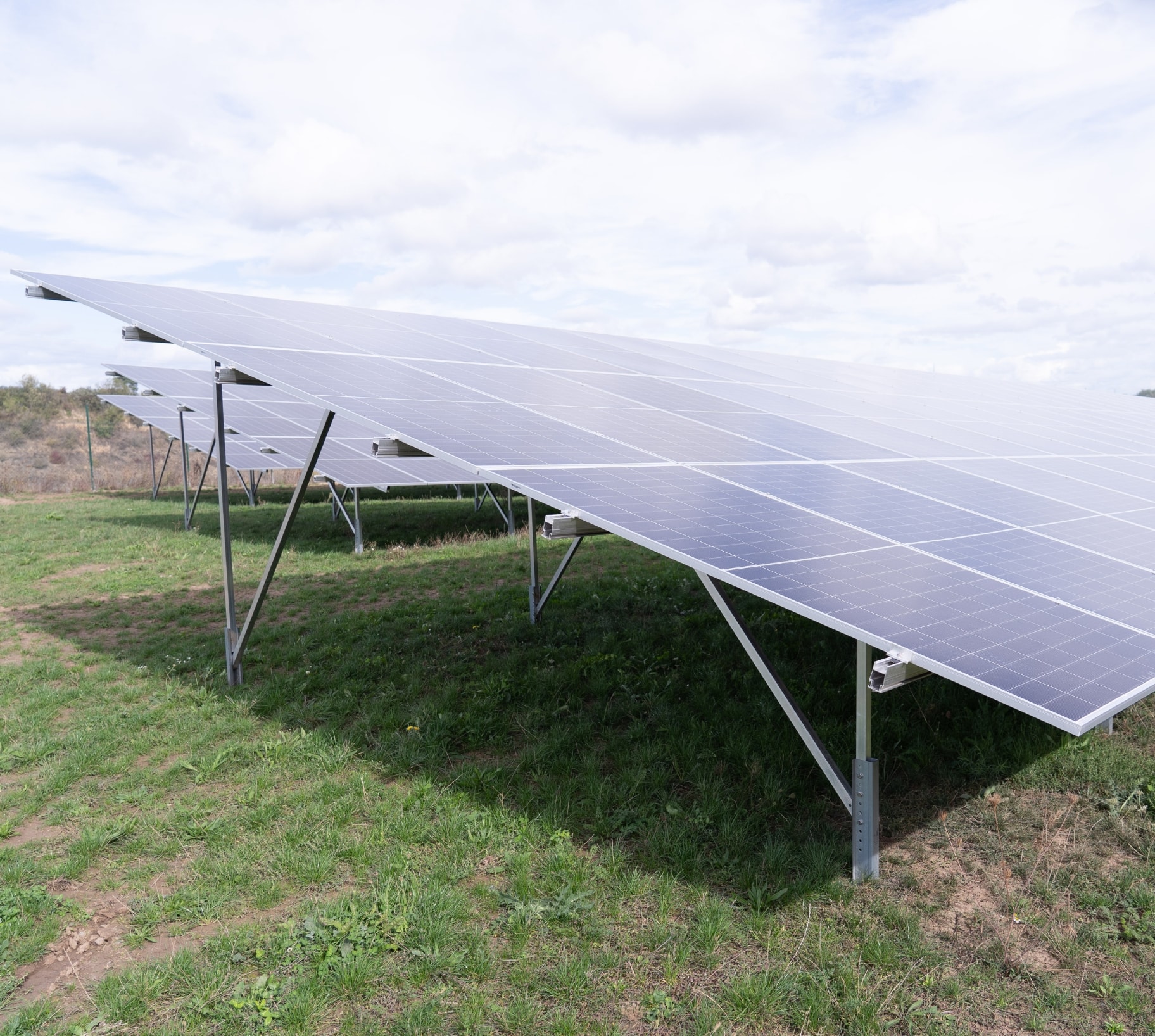

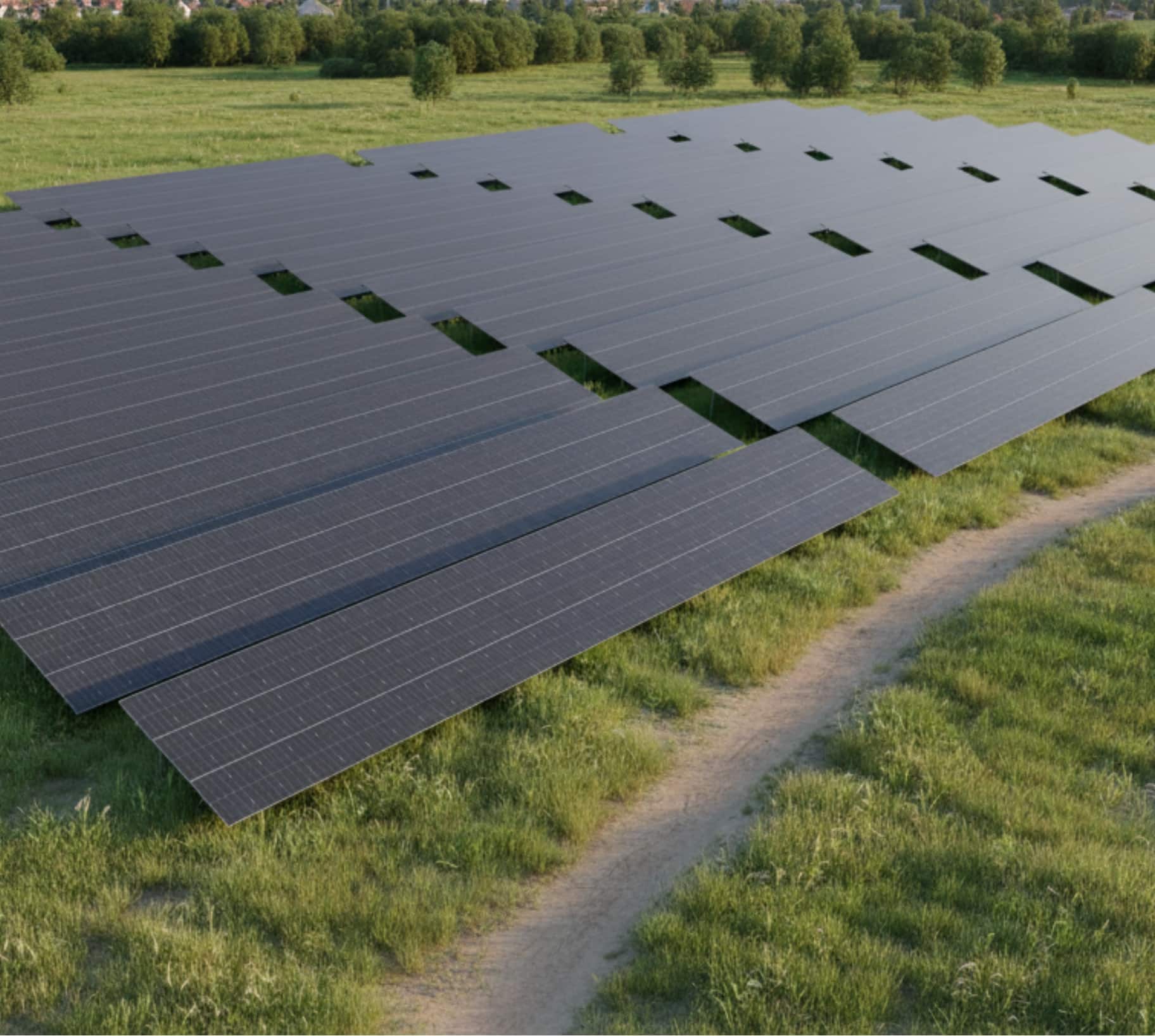

We also offer complete kits for medium-sized and smaller ground mounted installations – with intelligent design and proven stability. The K2 N-Rack System can be anchored with pile, concrete, and screw foundations, enabling quick and flexible installation. With tilt angles of 15° or 20°, it adapts effortlessly to different site conditions.

Pre-fabricated N-Rack kits with a 20° mounting angle are immediately available thanks to readily stocked components – ensuring fast delivery and installation time. An economical solution for small and medium-sized PV systems.

K2 N-Rack



The Challenge

The installation of a photovoltaic system on smaller areas requires an approach that combines clever design, efficient materials, and flexibility on-site. The project team faced uneven terrain with a gravel substrate. which reuired a stable yet adaptable mounting solution.. The modules were mounted with pile-driven foundations anchored in the compacted gravel layer. A late design change during the construction phase necessitated quick adjustments without impacting the timeline or budget.

The Solution in Action

Thanks to the system’s flexible aluminum design and universal in-stock components, the installation team was able to respond seamlessly to the design adjustments. The system enabled a cost-effective and efficient installation that made optimal use of the available land.

The on-site labor was minimal: carrier rails could be cut to length without post-treatment, and all modifications were made with standard hand tools. This streamlined workflow ensured a fast, straightforward, and reliable installation process - demonstratimng the versatility and practicality of the N-Rack system.

The Results

  • Location: Reclaimed quarry site
  • Year of construction: 2024
  • Project location: Illingen (Germany)
  • Project type: Ground-mounted system
  • System: N-Rack 3.15 with pile-driven foundations
  • Number of modules: 2586
  • Capacity: 1.5 MWp
  • Partner: Elektro Glenk GmbH
  • Special about the project: Maximum flexibility
